Home /

Roofing & Standing Seam Roofing Sheet

+91 9986644083 / +91 9324623558 / 09324633330 [email protected] , [email protected]

Versatile Advantages of Premium Roofing & Standing Seam Roofing Sheet

Versatile

Made from high-quality, robust materials that resist rotting, cracking, and breaking.

Weather proof & light weight

This makes them a reliable choice for buildings in areas prone to heavy rainfall or extreme weather.

Various Color Options

Available in a wide range of colors to suit every design preference.

Performance

Excel in high Single sheet.Fire Resistance and Dependable.

Maintenance free and long life

Since fastener is not used no maintenance is required and life is longer for sheet.

Easy to Install

Quick setup with minimal tools and no complex procedures.

“Durable roofing & standing seam roofing sheets designed for superior protection and style.” “Durable roofing & standing seam roofing sheets designed for superior protection and style.” “Durable roofing & standing seam roofing sheets designed for superior protection and style.” “Durable roofing & standing seam roofing sheets designed for superior protection and style.”

Leading Solutions in Advanced Roofing Excellence

Delivering Durable Roofing Sheet Solutions Across Industries and Applications!

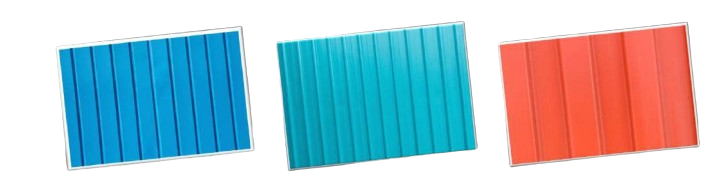

New Life profile sheets are made from the finest quality cold-rolled steel coils, which are coated with protective metallic layers and reinforced with multiple layers of organic coatings. New Life profile sheet can be readily roll-formed, bent, pressed, cut, lock-seamed, and stamped to suit the specific requirements without degrading the quality of the paint.

Schedule an appointment
Off White
RAL 9002
Light Blue
RAL 5012
Graphite Grey
RAL 7024
Turquoise Blue
RAL 5018
Mist Green
RAL 6011
Signal Blue
RAL 5005
Brick Red
No RAL Code

Roof and wall panels shall be of 26 gauges thick profiled galvalume/GI colour-coated steel sheeting. The standard thickness specification ranging from 0.4mm to 0.6 mm is widely used in the industry.

Roof Sheet Standing Seam Roofing Sheet
Joint Large Number of Joints in the Sheet Less number of Joints in sheet
Production At Factory premises At Factory premises or at site based on length of sheet required
Longevity 4–10 years 10–15 years

Standing seam roofing is a type of metal roofing in which metal roof panels or sheets are positioned vertically along the length of the roof. The seams of these panels are interlocked with each other using clips, and this system is also known as a double-lock system. In standing seam roofing, a concealed clip assembly is roll-formed or crimped into the panel seam without any drilling into the sheet. These clips serve two important functions: they secure the panels to the structural system, reducing the need for additional structural fasteners, and they allow the roof to expand and contract in response to changes in external temperature.

Mechanically seamed panels are roll-formed with specific edges that align with each other. Once the two panels are engaged, a hand or mechanical seamer bends the edges and locks them together. These types of sheets are widely used in airports, commercial buildings, and offices to ensure longevity. Currently, industries have also started using them despite their higher initial cost compared to normal sheets, as the long-term maintenance cost of conventional sheets is higher, and the value of the products stored inside these structures often justifies the one-time investment in standing seam sheets.

Our Clients

From homes to industrial sites, our roofing sheets have helped create durable, weatherproof, and aesthetically superior structures across every sector.

Enquiry Now


World’s Trusted Roofing Sheet Manufacturer!

Delivering Durable, Weather-Resistant and Stylish Roofing Solutions

As a trusted roofing solutions provider, our company is recognized among the leading manufacturers of high-quality roofing sheets. We have been transforming the roofing industry by delivering products that ensure superior protection, durability, and aesthetic appeal. Designed to perform in diverse climates, our roofing sheets offer exceptional corrosion resistance, strength, and cost efficiency. Preferred by architects, contractors, and industries worldwide, we take pride in delivering long-lasting reliability, advanced technology, and a commitment to uncompromising quality.

Environmental Sensitivity

Personalised Solutions

Performance Measures

Standing Seam Roofing

Standing Seam Roof: A Complete Guide.

A standing seam roof gets its name from the raised seams that connect its metal panels. These seams run vertically across the roof and are formed by folding and locking the edges of adjacent panels together, creating a strong, weather-tight seal. Known for their durability and sleek appearance, standing seam roofs require very little maintenance while offering excellent protection against high winds, heavy rain, and fire. Their long lifespan and reliable performance make them a popular roofing solution for residential, commercial, and industrial buildings. In this guide, we'll explore the different standing seam roofing systems, materials, and the key benefits they offer.

Standing Seam Roofing
Roofing Systems

Type of standing seam roofs:

01

Non-Structural Standing Seam Panels.

A non-structural standing seam roofing system consists of two main components: a flat metal panel and a raised seam (or batten) that locks over the panel edges. The seam securely snaps into place over concealed clips, hiding the fasteners and creating a clean, modern appearance while protecting the roof from water infiltration.

Unlike structural standing seam systems, non-structural panels require continuous support from a solid roof deck, such as plywood or metal decking. They cannot be installed as a standalone roofing system over open framing. These panels are also available in tapered and curved profiles, making them an excellent choice for projects with unique architectural designs or curved rooflines.

02

Continuous Seam Positive Locking:

A continuous standing seam metal roof features panels with built-in interlocking seams. Each panel securely locks into the previous one and is held in place with concealed clips, eliminating the need for separate seam caps. This design creates a strong, weather-tight connection while reducing the risk of the seams shifting over time. Since the panels can be installed directly over a solid roof deck, installation is faster and requires less labor, making it a durable and cost-effective roofing solution.

03

Mechanically Seamed Standing Seam Roof:

A mechanically seamed standing seam roof is assembled on-site, where the panel edges are joined together using a specialized seaming machine. This creates a strong, secure, and weather-resistant connection between the panels. The system is available with different seam heights, and taller seams can provide added strength and improve the roof's overall performance. The panels are attached using either fixed or sliding clips. Sliding clips allow the metal to expand and contract with changing temperatures, helping prevent stress or damage over time. Another advantage of this system is that it can be used on curved roofs, making it a great choice for projects with unique architectural designs.

Materials

Materials Used in Standing Seam Metal Roofs.

Standing seam metal roofs are available in a wide range of colors, finishes, and metal options, making them suitable for commercial, industrial, and architectural projects. Light-colored roofs are especially popular because they reflect more sunlight, helping reduce heat absorption and improve energy efficiency.

Choosing the right material for a standing seam roof sheet depends on factors such as the local climate, corrosion resistance, durability, design requirements, and budget. The most commonly used materials include aluminum, aluminum-zinc alloy (Galvalume), coated steel, and copper. Each material offers excellent strength, long service life, and low maintenance when installed correctly.

01 Aluminum
02 Aluminum-zinc alloy (Galvalume)
03 Coated steel
04 Copper

Standing seam roofing systems are widely used in PEB industrial sheet applications, warehouses, manufacturing facilities, and commercial buildings because they provide superior weather protection, concealed fasteners, and a clean, modern appearance. They are also a preferred choice for industrial shed fabrication, where long-lasting performance, quick installation, and minimal maintenance are essential.

Performance

Performance of Standing Seam Metal Roofing.

Standing seam metal roofing systems provide excellent durability, weather protection, and energy efficiency. Installed over insulation, they reduce heat transfer and minimize noise during rain. Their raised interlocking seams and concealed fasteners create a leak-resistant roof suitable for slopes of 3:12 or greater. These roofs allow easy installation of solar panels and other rooftop equipment without drilling holes, preserving the roof's integrity. Made from durable 24-gauge steel with a long-lasting Kynar® coating, they resist corrosion, fading, and harsh weather for decades. Sliding clip systems accommodate thermal expansion and contraction, preventing stress and extending roof life. Designed to withstand strong wind loads, standing seam roofs are a reliable choice for commercial, industrial, and residential buildings.
